KPP

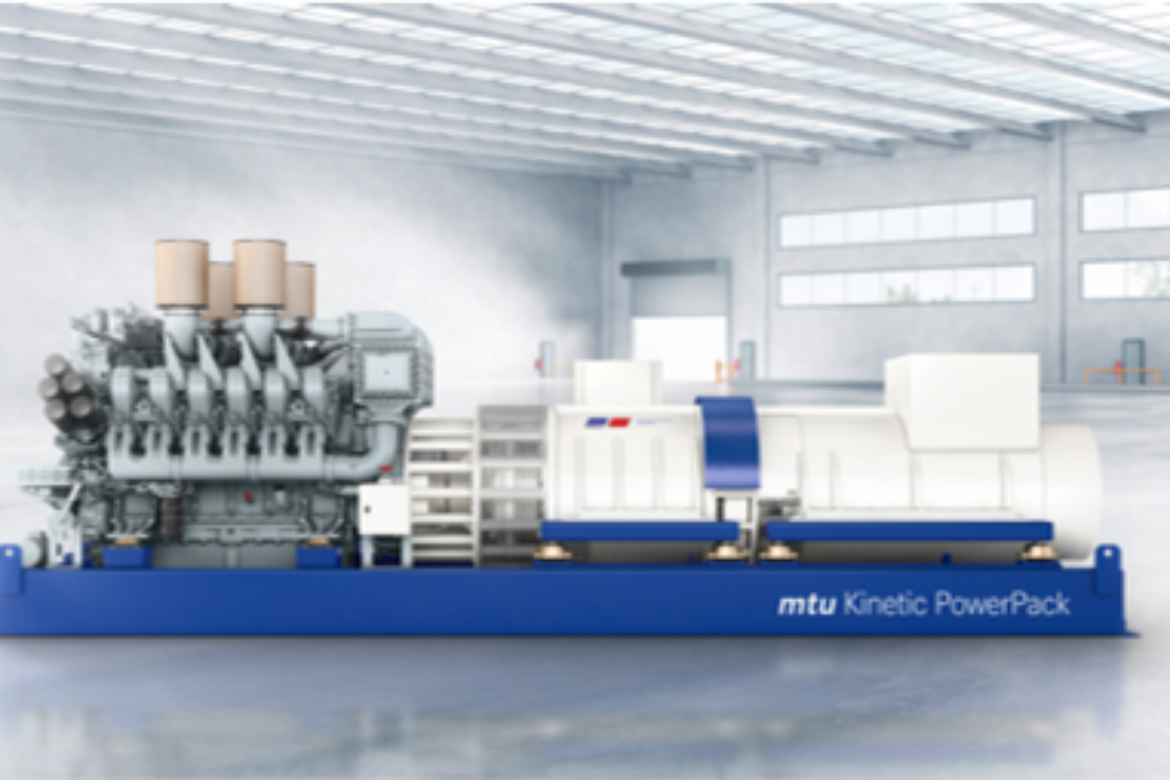

mtu Kinetic PowerPack
mtu Kinetic PowerPack provides dynamic uninterruptible power supply through kinetic energy and is engineered to withstand the most demanding power supply challenges.
- Lower TCO: At medium and higher power ratings, mtu Kinetic PowerPacks are more cost-effective, reducing
- consumable electricity cost and maintenance.
- Smaller footprint: Its component count and monobloc structure give the mtu Kinetic PowerPacks a compact design, reducing its footprint to 40% of an equivalently rated static UPS system.
- Units up to 3000 kVA: As all designers know, a lower component count leads to a higher level of reliability and resilience.
- Optimal sustainability: No need for heavy batteries, no more chemical waste. Due to the kinetic energy storage unit’s energy that is immediately available to generate power until the mtudiesel engine is activated.
- Medium voltage systems: mtuKinetic PowerPacks are the perfect solution for medium voltage critical loads or when more considerable distribution distances need to be covered.
KPP Range
| Power Output | Available Voltages | Emissions | Accu arrang. | ||||||
| no-break kVA | no-break kWe | short-break kVA | short-break kWe | low voltage 380 – 415V (3 Phase) |
medium voltage 6 – 36 kV (3 Phase) |
Fuel consumption optimized | NOx emission optimized | ||
| kVA | kWe | kVA | kWe | ||||||
| mtu KP5 | 500 | 400 | x | x | x | x | Single | ||
| 630 | 504 | x | x | x | x | Single | |||
| 800 | 640 | x | x | x | x | Single | |||
| 1000 | 800 | x | x | x | x | Single | |||
| 1200 | 960 | x | x | x | x | Single | |||
| 1250 | 1000 | x | x | x | x | Single | |||
| 1500 | 1200 | x | x | x | x | Single | |||
| 1650 | 1320 | 600 | 480 | x | x | x | x | Single | |
| 1700 | 1360 | x | x | x | x | Single | |||
| 1875 | 1500 | 625 | 500 | x | x | x | x | Single | |
| 2000 | 1600 | x | x | x | x | Single | |||
| mtu KP7 | 2250 | 1800 | x | x | x | x | Single | ||
| 2500 | 2000 | x | x | x | x | Single | |||
| 2750 | 2200 | x | x | x | x | Single | |||
